Laser cutting

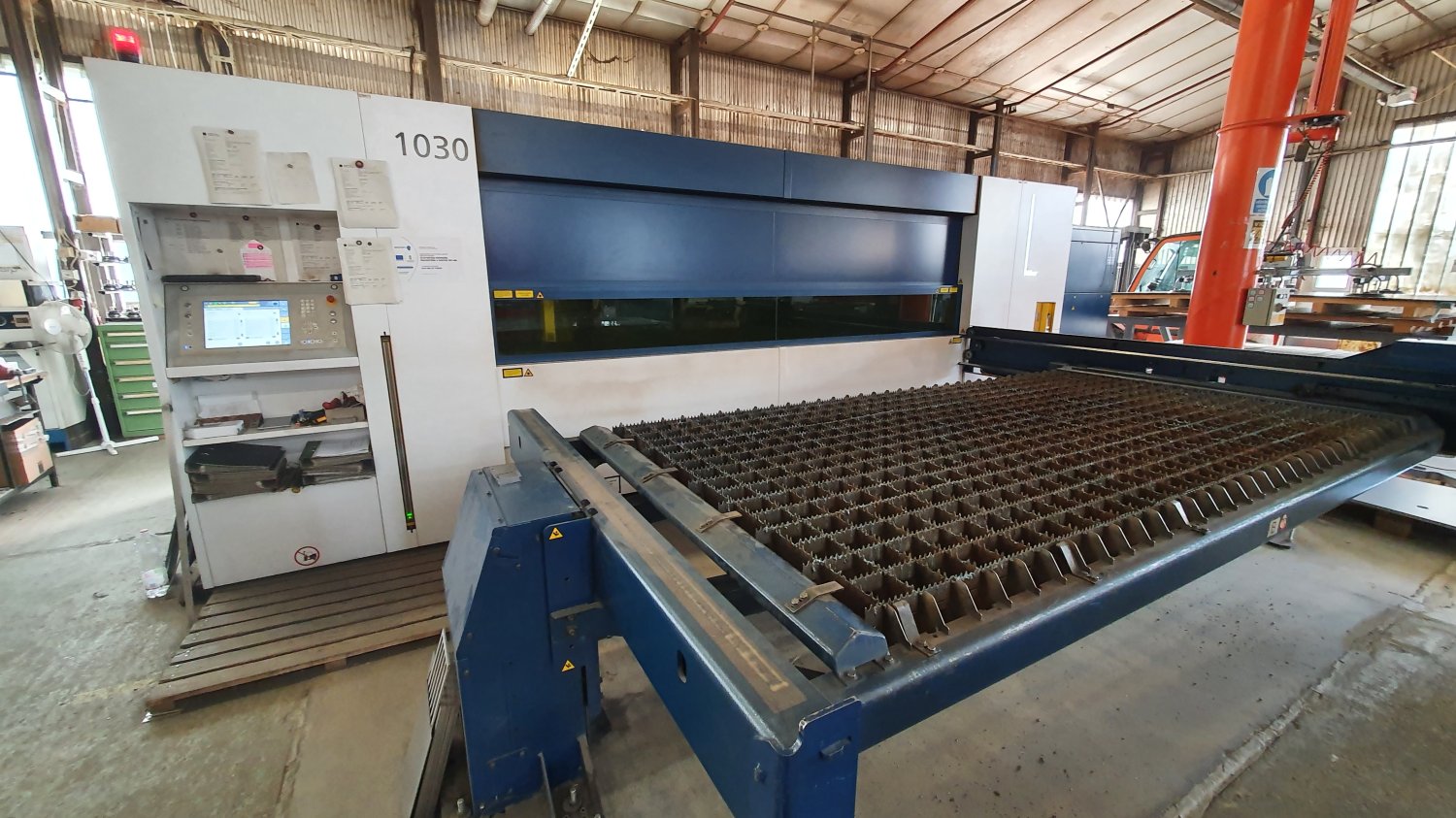

The TruLaser 1030 fiber is capable of cutting the full spectrum of plate thicknesses for carbon steels (1-15 mm).

Workspace

  • X axis: 3000 mm
  • Y axis: 1500 mm
  • Maximum workpiece weight: 1100 kg

Laser Specifications - TruDisk 3001

  • Maximum laser power: 2000 w
  • Maximum plate thickness for structural steel: 15 mm
  • Maximum plate thickness for stainless steel: 8 mm
  • Maximum plate thickness for aluminium: 6 mm
  • Maximum plate thickness for copper: 6 mm
  • Maximum plate thickness for brass: 6 mm

The TruLaser 1030 fiber is particularly effective for cutting thin stainless steel and structural steel, aluminium and other metal sheets.
The machine can also cut aluminium, brass, copper or foiled stainless steel quickly and easily.
BrightLine fibre ensures the best cutting results every time.
Up to a plate thickness of 3 mm, the machine cuts with nitrogen shielding gas, so that no oxide layer is formed on the cut edge, which can cause problems when painting the product.

The TruLaser 1030 is efficient, fast and accurate.
