Robotic Welding (Steel)

In order to ensure the continuously high quality of products manufactured in large series, we have expanded our machinery with the most advanced robotic welding technology.

We operate one YASKAWA ARC SYSTEM 8000 and one YASKAWA ArcWorld C robotic welding system, enabling us to carry out precise, fast, and reliable processing of steel products.

Through automation, we are able to offer our clients consistently high quality, high production capacity, and competitive pricing.

Yaskawa’s precision robot is developed specifically to meet the strict requirements of arc welding, where extremely short processing times are essential. This translates into greater efficiency and energy savings.

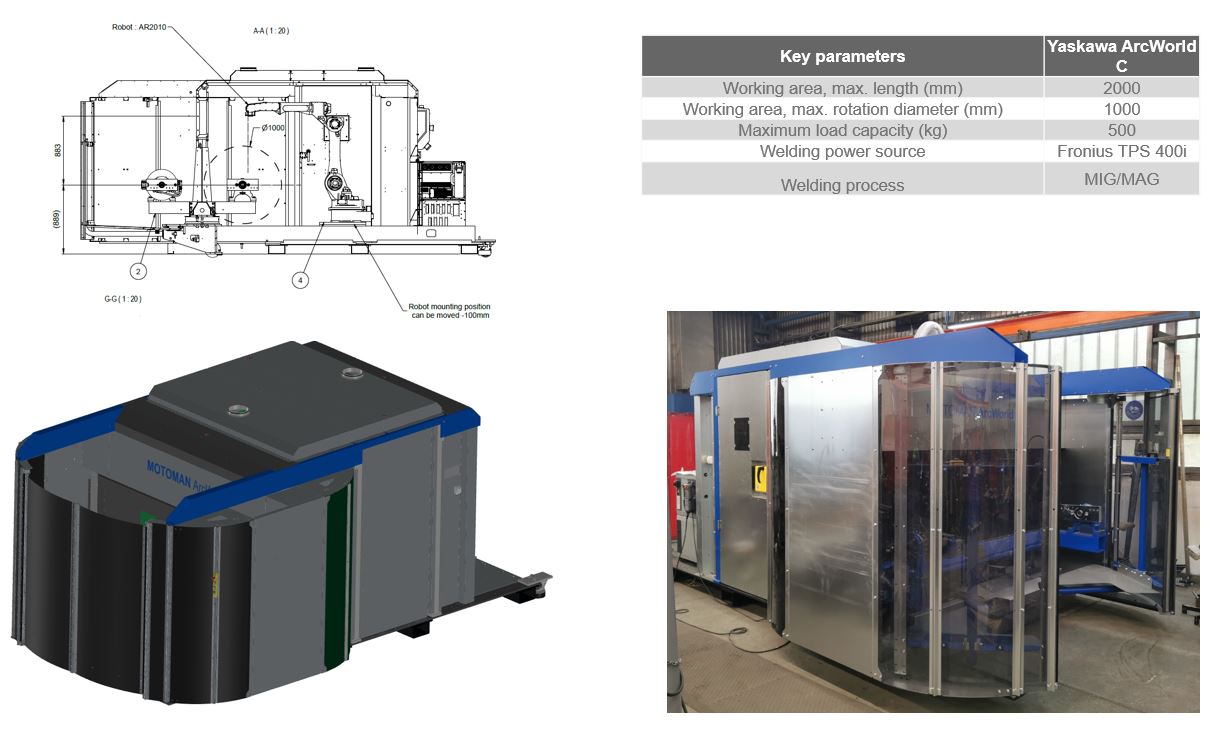

The Motoman AR2010 robot arm integrated into the ArcWorld C offers a load capacity of up to 12 kg and a working range of up to 2010 mm, allowing for easy and high-quality processing of large, heavy workpieces.

The slightly curved shape of the lower arm and its hollow shaft make it possible to weld even hard-to-reach components. The air and process media connectors are integrated into the base, allowing for a 340-degree operating range on the first main axis (S-axis).

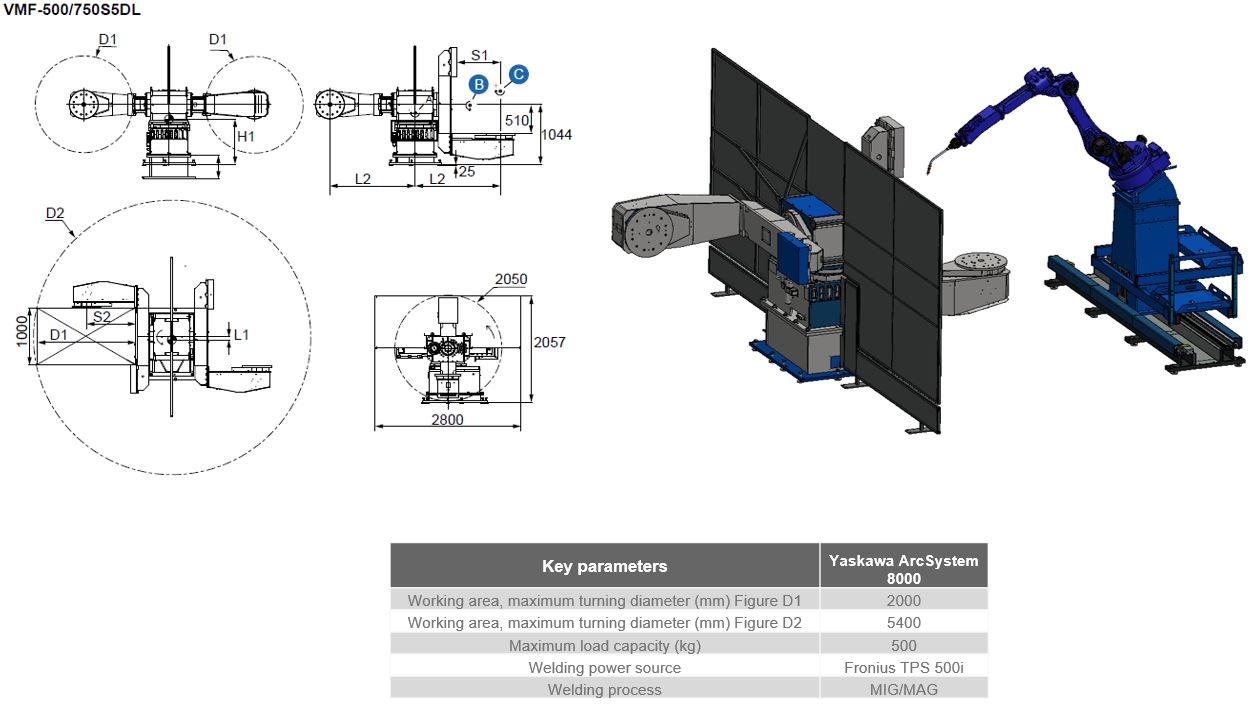

In addition to the above positive features, the YASKAWA ARC SYSTEM 8000 has been integrated into our production plant specifically for machining large-sized products.
